502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Oil Filter And Adaptor

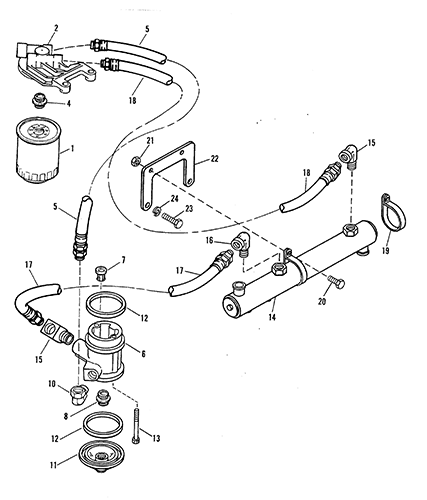

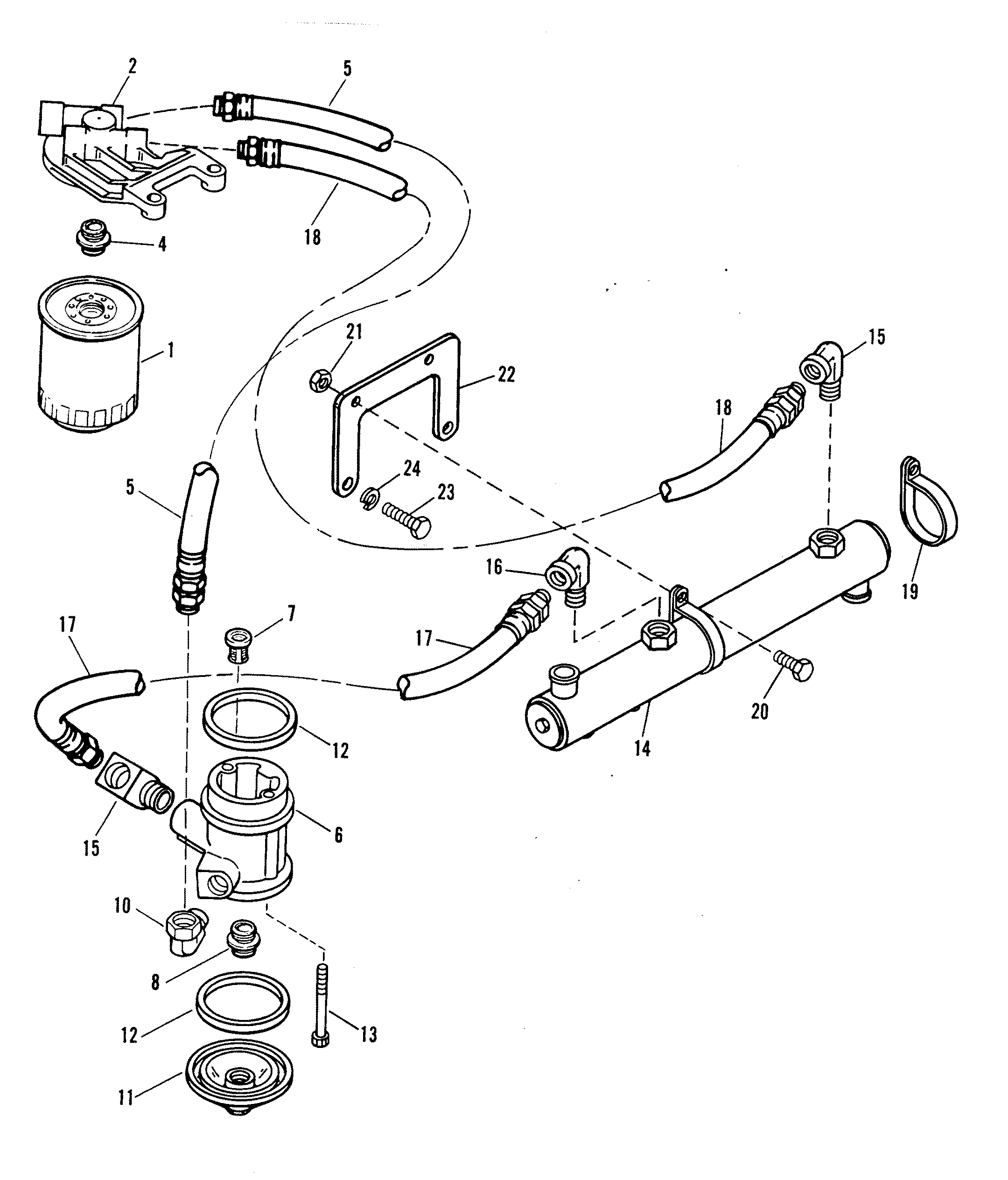

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-866340Q03
676-9-57825

OIL FILTER 1 14957 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL
2 814420A5



BRACKET ASSEMBLY *1
8 = USE WITH CAST IRON EXHAUST ELBOW 8
4 22-814822



FITTING *1
1 = USE WITH STAINLESS STEEL EXHAUST ELBOW 8
2 817403A4



BRACKET ASSEMBLY 1 817403A2 This Part is No Longer Available NOTE: LISTED BELOW ARE REPLACEMENT PARTS FOR THE CLOSED COOLING OIL COOLER: 1
4 22-814822



ADAPTOR 1
[816766] END COVER 2 1
5 32-9235761



HOSE (36") 1
[27-816768] GASKET 2
6 90783A22



ADAPTOR ASSEMBLY 1
10-816767BOLT 2
7 99889



BY-PASS VALVE 1

8 22-805632



ADAPTOR 1 32720
10 22-97368



ELBOW (90) 1

11 91830



COVER 1

12 27-91892

700-32390
GASKET 2
3
13 10-91966



SCREW (4") 1
No longer made, limited availability
13 10-91967



SCREW (3-1/4") 1   This Part is No Longer Available No longer made, limited availability
14 817577A2



OIL COOLER (OLD DESIGN ) 1 816082T This Part is No Longer Available SEE NOTE
14 817577T



OIL COOLER (NEW DESIGN) 1   This Part is No Longer Available SEE NOTE
15 22-63825



ELBOW 2

16 22-48246



ELBOW 1

17 32-9235751



HOSE (26") 1

18 32-9235761



HOSE (36") 1

19 54-814859



CLIP 2   This Part is No Longer Available
20 10-74824



SCREW 2

21 11-26484



NUT 2

22 814857



BRACKET (OLD DESIGN) 1   This Part is No Longer Available
22 806030T



BRACKET (NEW DESIGN) 1 817578 This Part is No Longer Available
23 10-816585



SCREW 2
