502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Wiring Harness And Electrical Components (Distributor)

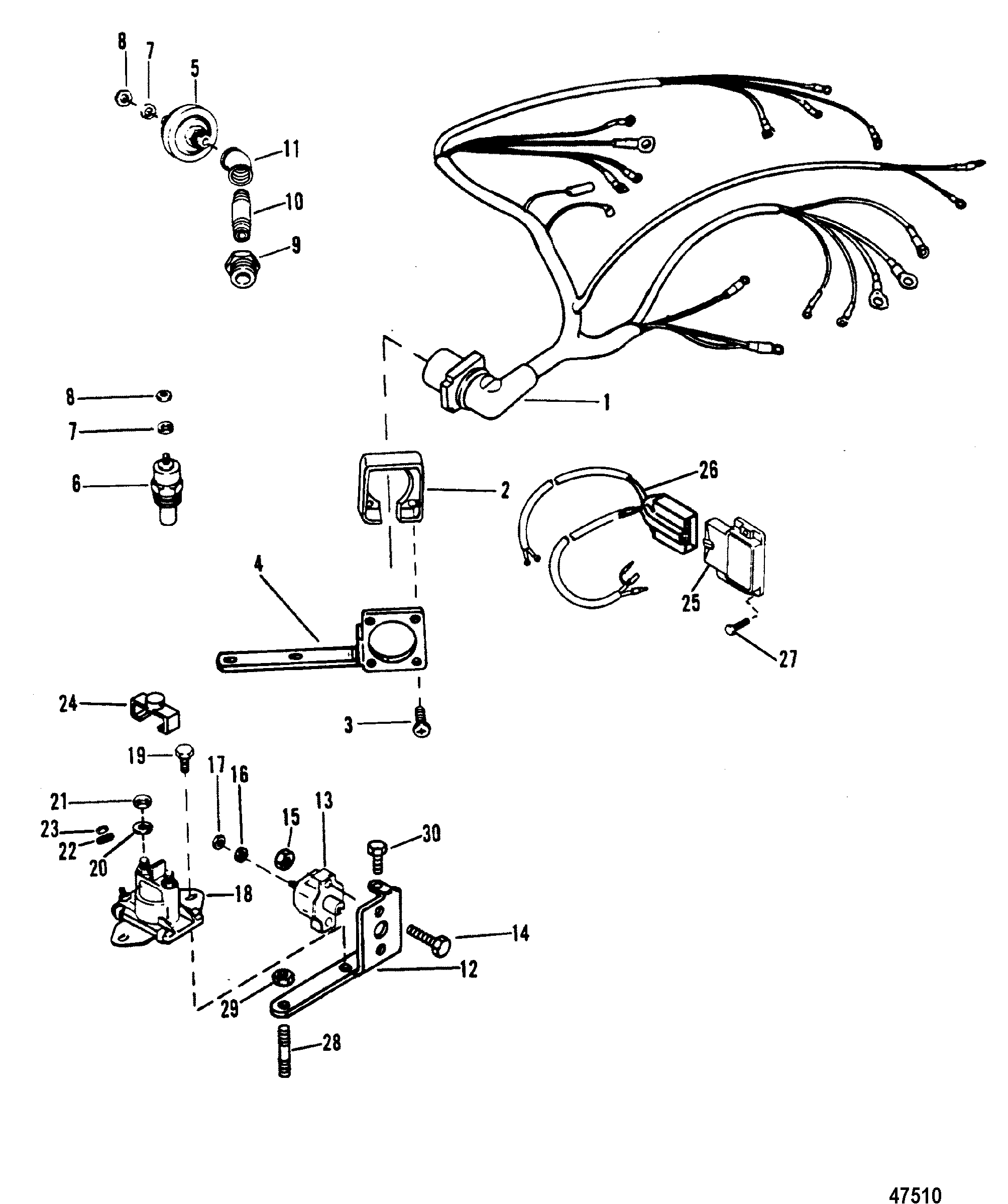

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-806217A10



HARNESS ASSEMBLY 1 84-805369A8
2 26079A2



PLATE KIT, Wire Harness Mount 1

3 10-15001



SCREW, (#8-16 x .875) 4

4 805468T



BRACKET 1
This Part is No Longer Available
5 8M0068784



SENDER ASSEMBLY, Oil Pressure 1 815425
5 37293T



SENDER ASSEMBLY, Oil Pressure (DUAL) OPT. 37293
6 806490T



SENDER ASSEMBLY, Water Temperature 1 97257A1
6 49734



SENDER ASSEMBLY, Water Temperature (DUAL) OPT. 49734A1
7 13-26996



LOCKWASHER, (#10) Stainless Steel 2

8 11-68219



NUT, (#10-32) Stainless Steel 2

9 22-48556



BUSHING , Reducer (.250 To .125) 1

10 22-885153



NIPPLE 1 22-42554
11 22-46932



ELBOW 1
This Part is No Longer Available
12 899719T01



BRACKET, Electrical 1 805368T
13 88-11178A01



BREAKER, Circuit - 50 Ampere (50AMP) 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
14 10-45862



SCREW, (#10-32 x .875) (7/8") 2

15 11-61356



NUT, (#10-32) Reduced Hex 2

16 13-26996



LOCKWASHER, (#10) Stainless Steel 2

17 11-68219



NUT, (#10-32) Stainless Steel 2

18 89-96158T



SOLENOID, Starter 1 89-96158
19 10-805564



SCREW, (.250-20 x .750) 2

20 13-26992



LOCKWASHER, (.250) Stainless Steel (1/4) 2

21 11-94330



NUT, (.250-20) Brass (1/4-20) 2

22 13-26996



LOCKWASHER, (#10) Stainless Steel (#10) 2

23 11-68219



NUT, (#10-32) Stainless Steel (10-32) 2

24 85-97861



INSULATOR 1

25 805361T5



IGNITION MODULE 1

26 84-805363A2



HARNESS ASSEMBLY 1
This Part is No Longer Available
27 10-12110



SCREW, (#6-32 x .750) 2

28 16-805459



STUD, Mercathode Mounting 1
29 11-46438



NUT, (#10-32) 1
30 10-805565



SCREW, (#10-32 x .750) 1
