502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Flywheel Housing

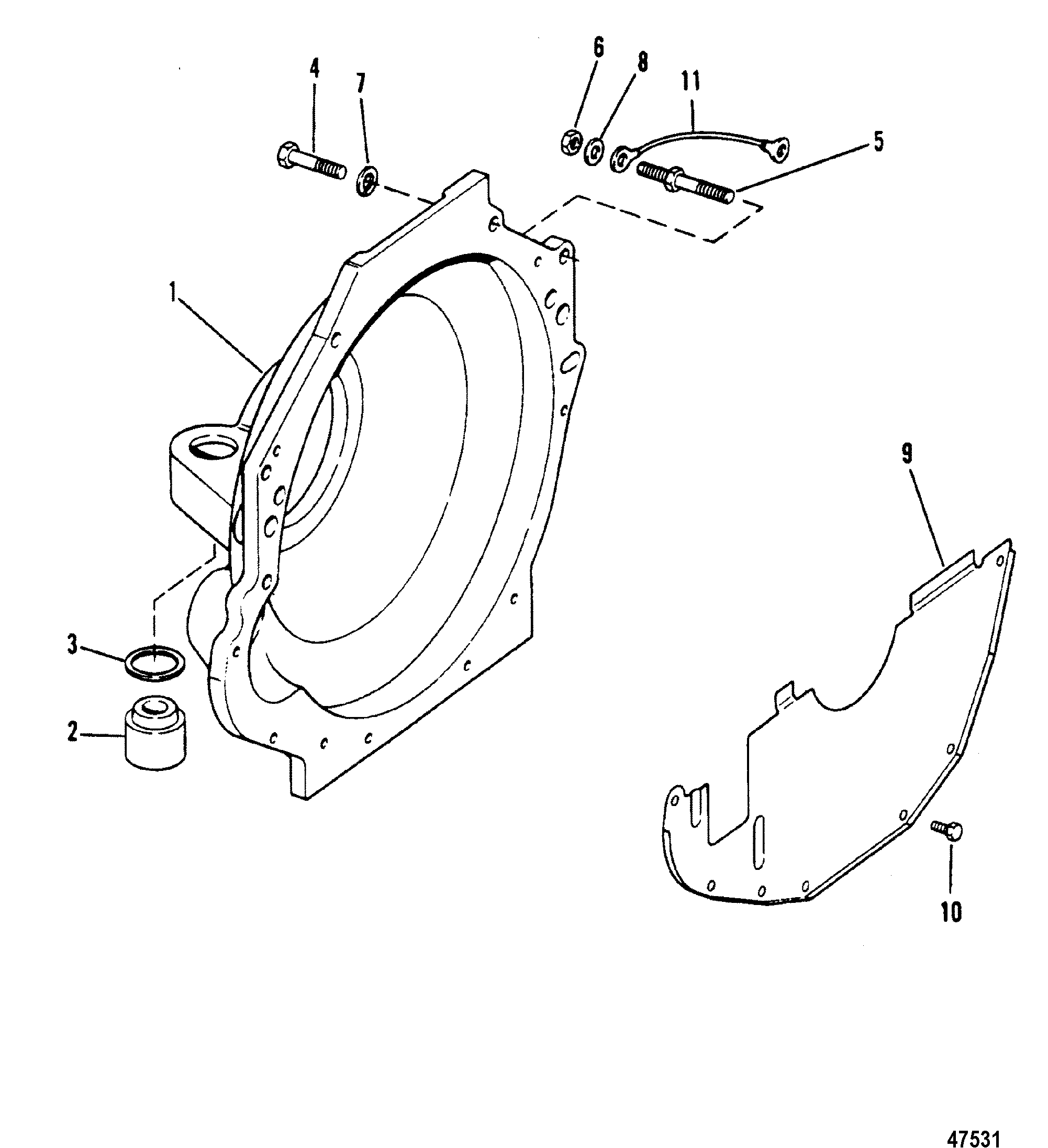

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | HOUSING ASSEMBLY, Flywheel | 1 | 12675A7 | |||||
| 2 | 865330A02 | MOUNT | 2 | 88791 | |||||
| 3 | 23-99322 | SPACER | 2 | ||||||
| 4 | 10-37612 | SCREW, (.375-16 x 1.250) (1-1/4") | 4 | ||||||
| 4 | 10-358701 | SCREW, (.375-16 x 2.00) (2") | 1 | ||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER, (.375) | 7 | ||||||
| 8 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 9 | 807260A2 | COVER | 1 | 818719A1 | |||||
| 10 | 10-32773 | SCREW, (.250-20 x .875) | 7 | ||||||
| 11 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 1 |
