502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Cylinder Block And Camshaft

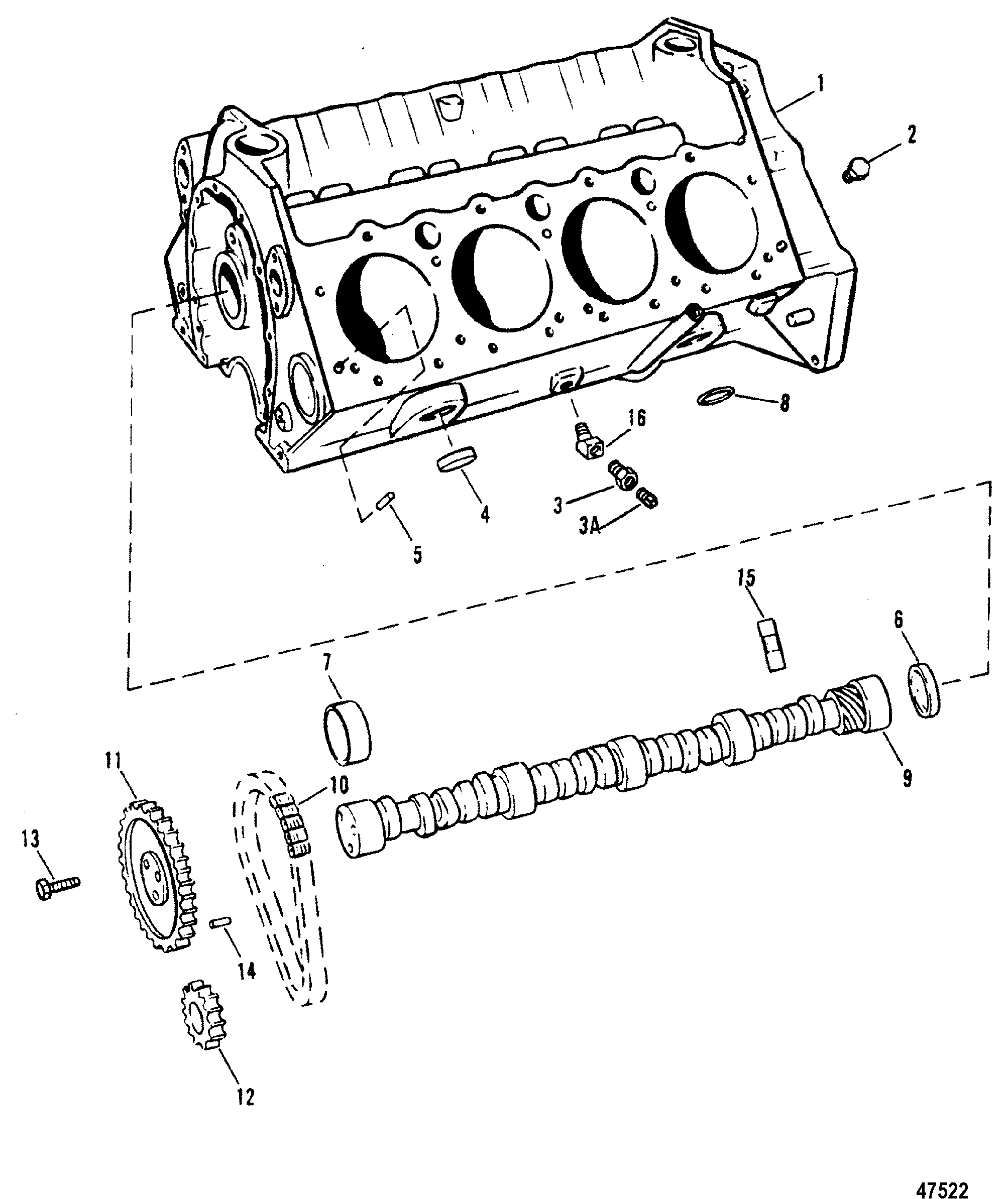

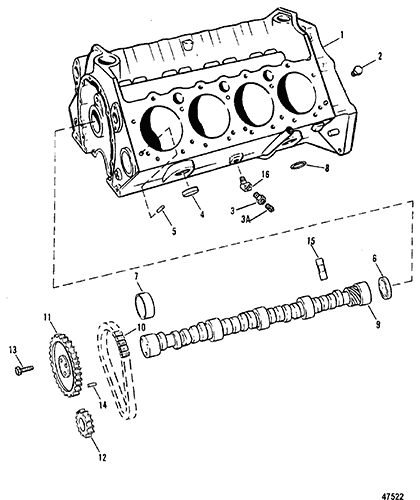

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 842-811527



CYLINDER BLOCK 1
This Part is No Longer Available
2 22-48340



PLUG, (.250-18 x .41) (1/4") 4

3 22-48556



BUSHING , Reducer (.250 To .125) 2

3A 22-328022



PLUG, Pipe (.125-27) 2 22-32802
4 19-34270



EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.) 8

5 17-52190



PIN 4

6 19-94140



EXPANSION PLUG 1

7 23-85684



BEARING SET 1

8 25-69756



O-RING, (.500 Inch) (1/2") 1 25-811528
9 431-9830



CAMSHAFT 1

10 61728



CHAIN, TIMING 1
This Part is No Longer Available (Double Roller Chain)
10 845796T



CHAIN, TIMING 1 811580 (Single Roller Chain)
11 43-61726



SPROCKET, CAMSHAFT 1
This Part is No Longer Available (Double Roller Chain)
11 43-811578



SPROCKET, CAMSHAFT 1
(Single Roller Chain)
12 43-61727



SPROCKET, CRANKSHAFT 1
This Part is No Longer Available (Double Roller Chain)
12 43-845794T



SPROCKET, CRANKSHAFT 1 43-811579 (Single Roller Chain)
13 10-845942



SCREW, (.312-18 x .750) 3 10-35339
14 17-843378



PIN, Dowel (1/4 In. Diameter) (1/4" DIA.) 1 17-35312
15 811583



LIFTER 16

16 22-37682



FITTING, Elbow (45 Degree) (45DEGREES) 1

- 807745A05



MARINE LONG BLOCK ENGINE 1 806353A1 This Part is No Longer Available
- 27-812712A92



GASKET SET, OVERHAUL (CONTENTS INDICATED BY #) 1

- 92-809826



SEALER, Red RTV, RED RTV 1 92-916011
- 34227Q02



SEALING COMPOUND, (16 Ounce) 1 92-342271
