496 Mag HO Model - Serial 0W310000 Thru 0W649999 - Cooling System, Raw Water Components

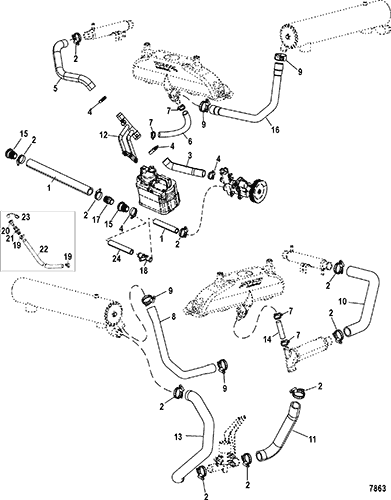

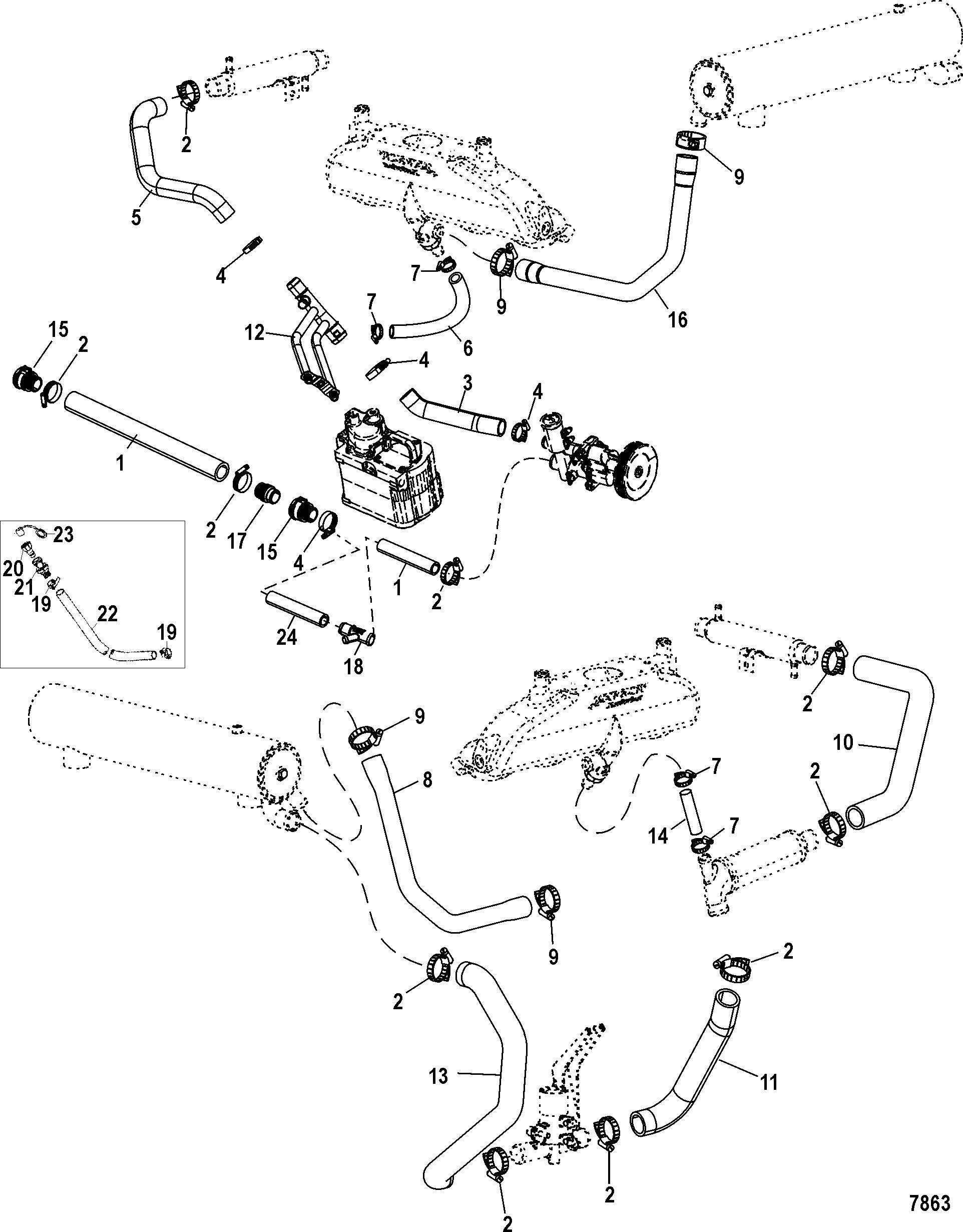

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-865672079



HOSE, (96.00 Inches Bulk), Cut to Fit 1

2 54-815504222



CLAMP, Worm Gear (1.98 DIameter), Hose 12

3 32-865865



HOSE, Sea Water Pump to Water Orifice 1

4 54-815504224



CLAMP, Worm Gear, Hose 4

5 32-865235



HOSE, Water Orifice to Power Steering Cooler 1

6 32-865713



HOSE, Exhaust Manifold Drain to Water Orifice 1

7 54-815504212



CLAMP, Worm Gear, Hose 4

8 32-864488



HOSE, Heat Exchanger to Port Exhaust Manifold Drain 1

9 54-815504216



CLAMP, Worm Gear (1.56 Diameter), Hose 4

10 32-863894



HOSE, Power Steering Cooler to Oil Cooler 1

11 32-865265



HOSE, Oil Cooler to Port Drain Housing 1

12 22-865208T01



HOSE ASSEMBLY, 3 Bib Orfice Meter 1

13 32-863051



HOSE, Water Drain to Heat Exchanger 1

14 32-4285069



HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting 1 (Port) (Cut to 3.00 Inch Length)
15 22-865324



QUICK CONNECT, Female 2

16 32-865294



HOSE, Heat Exchanger to Starboard Exhaust Manifold Drain 1
17 22-865362



QUICK CONNECT, Male 1
- 19-8079923



COVER, Hose Clamp End AR
