496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Raw Water Cooling System

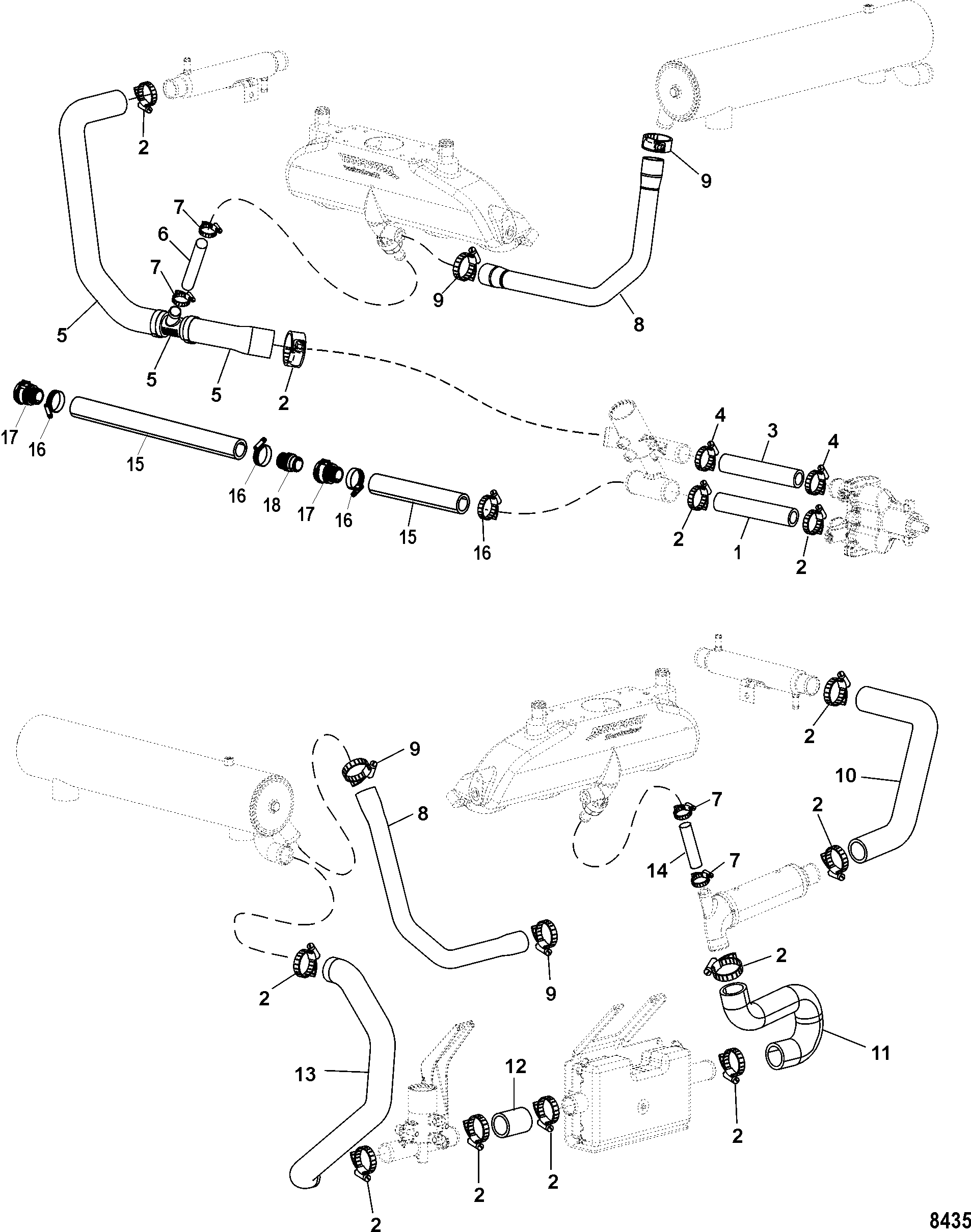

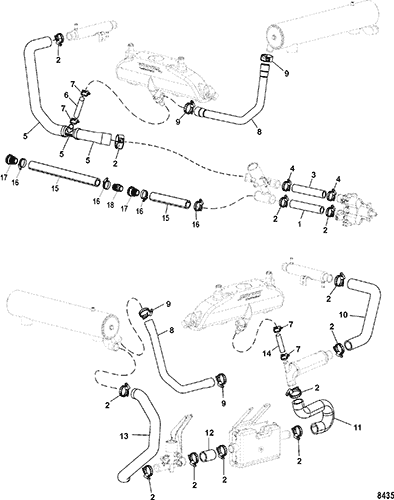

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863036



HOSE, Sea Water Pump to Water Drain 1

2 54-815504222



CLAMP, Worm Gear (1.98 DIameter), Hose 12

3 32-865672079



HOSE, Sea Water Pump to Water Drain 1 32-86334352
4 54-815504228



CLAMP, Worm Gear, Hose 3

5 32-8M0063512



HOSE ASSEMBLY, Water Drain to Power Steering Cooler 1 32-863037A1
6 32-4285069



HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting 1
(Starboard)(Cut to 9 In.)
7 54-815504212



CLAMP, Worm Gear, Hose 4

8 32-864488



HOSE, Heat Exchanger to Water Rail 2

9 54-815504216



CLAMP, Worm Gear (1.56 Diameter), Hose 4

10 32-863894



HOSE, Power Steering Cooler to Oil Cooler 1

11 32-863897



HOSE ASSEMBLY, Oil Cooler to Cool Fuel System 1

12 32-863047



HOSE, Cool Fuel System to Water Drain 1

13 32-863051



HOSE, Water Drain to Heat Exchanger 1

14 32-4285069



HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting 1
(PORT)(Cut to 3 In.)
15 32-865672079



HOSE, (96.00 Inches Bulk), Cut to Fit 1

16 54-815504222



CLAMP, Worm Gear (1.98 DIameter), Hose 2

17 22-865324



QUICK CONNECT, Female 2
SN# 0W000005 & Up
18 22-865362



QUICK CONNECT, Male 1
SN# 0W000005 & Up
- 19-8079923



COVER, Hose Clamp End AR
