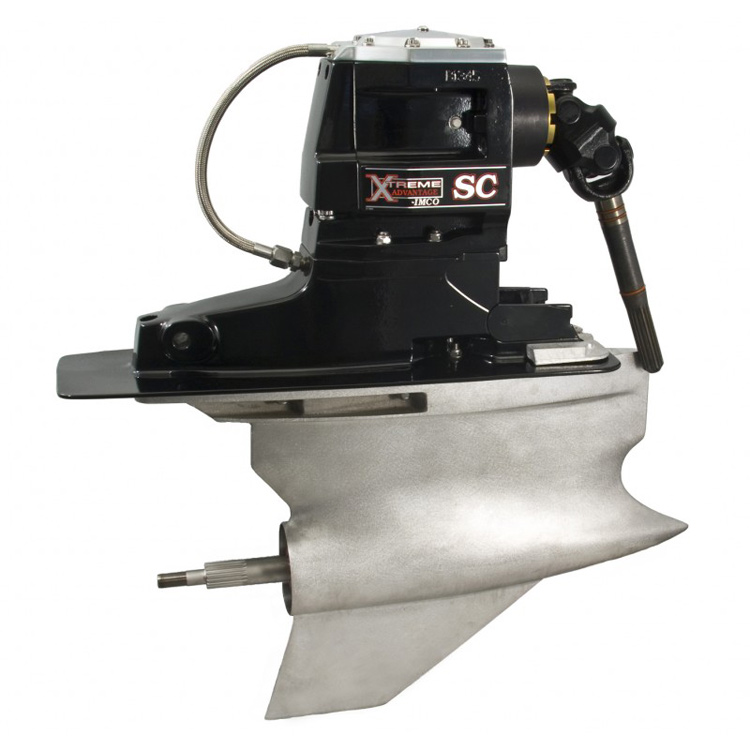

IMCO Drive SC Upper with SC Lower with 1-1/4" Prop Shaft

IMCO Drive SC Upper with SC Lower with 1-1/4" Prop Shaft

This unit is a complete IMCO SC Drive. You can configure this drive to fit your particular needs by choosing between the different colors, gear ratio's and the lengths of the lower unit that are offered.

The Billet Aluminum top cap is supported by eight bolts with a controlled water-circulation system and built in spray nozzles to provide maximum cooling to the external upper gear case.

The steel tower in the floor is stabilized through internal lateral support beams to eliminate tower flex and gear deflection.

IMCO has developed a rigid pinion and bearing pack assembly with non-elastic shims to provide the correct rolling torque while stabilizing both input yoke and pinion. Tightened to 75 lb/ft, the pinion assembly is held in place by our plated steel ujoint retainer nut through a direct load-bearing path.

For Replacement Parts:
SC Lower Click Here
SC Upper Case Click Here
SC Upper Gear Click Here

NOTE: These parts & unit have no warranty.

NOTE: This page is setup so you can pre-configure your Drive before calling to place an order. Due to its cost this part cannot be purchased online.

Reviews On This Product:
(0.00)stars out of 5
# of Ratings: 0

Making selections in the following sections may change the final product price.

Summary

  • Standard, Black (421-01-8312)
  • Standard, 1.50 Ratio, 1-1/4" Prop Shaft (421-01-8410)
  • Satin
$16,963.00
$15,599.99
$15,599.99
421-1160
CALL TO ORDER
