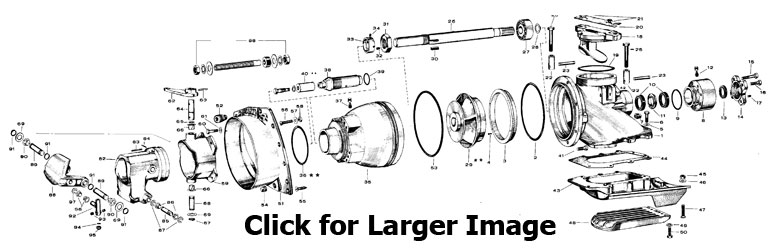

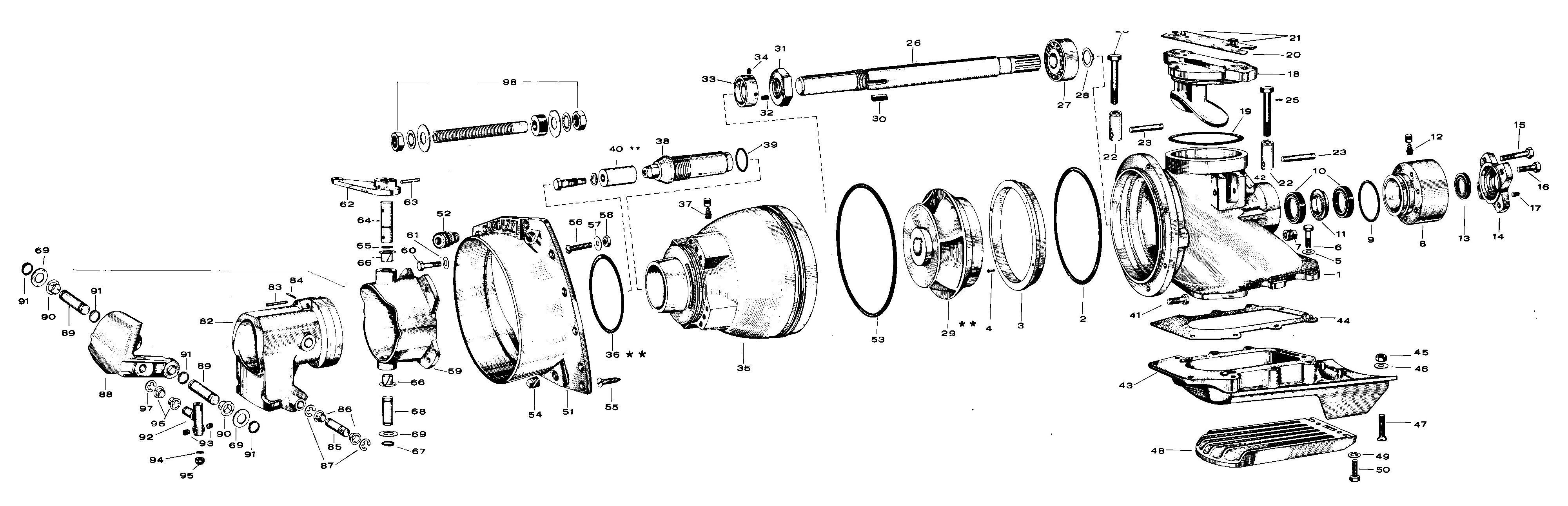

Jacuzzi 12WJ Parts

Sym. Per Unit Description Part No.
1 1 Suction Piece No. 4779 160-04-2012-08
2 1 Suction Piece O-ring 160-47-0271-07
3 1 Suction Piece Wear Ring 160-08-2383-13
4 4 Wear Ring Self-Tapping Screws 160-14-1447-60
5 10 Suction Piece Washers 160-14-0740-41
6 10 Suction Piece Cap Screws 160-14-0731-00
7 1 Suction Piece Pipe Plug 160-31-0061-66
8 1 Bearing Housing No. 3982 160-08-2047-11
9 1 Bearing Housing O-ring 160-47-0232-05
10 2 Bearing Housing Lip Seals 160-10-1274-13
11 1 Lip Seal Back Up Plate 160-10-1342-03
12 1 Bearing Grease Fitting 160-23-0562-03
13 1 Bearing Cap Lip Seal 160-10-1264-07
14 1 Bearing Cap No. 4365 160-08-2205-27
15 4 Bearing Housing Cap Screws 160-14-1303-30
16 4 Bearing Cap Screws 160-14-0731-00
17 1 Bearing Cap Pipe Plug 160-31-0058-46
18 1 Inspection Cap No. 4761 160-51-0104-03
19 1 Inspection Cap O-Ring 160-47-0258-04
20 1 Inspection Cap Lock Wrench 160-22-1810-02
21 2 Wrench Nylatch Assembly 160-23-1418-07
22 2 Swivel Block 160-51-0201-05
23 2 Swivel Block Pin 160-14-0802-04
25 2 Hold Down Cap Screw 160-14-0734-07
26 1 Splined Impeller Shaft 160-07-5271-04
27 1 Thrust Bearing 160-08-2202-04
28 1 Bearing Retaining Ring 160-14-0767-07
29 1 Impeller 9-9/16" Dia. "A" Cut (Alum.) 160-05-2528-04
29.1 1 Impeller 9-3/8" Dia. "B" Cut (Alum.) 160-05-2529-03
29.2 1 Impeller 9-1/4" Dia. "C" Cut (Alum.) 160-05-2530-00
29.3 1 Impeller 9-1/8" Dia. "O" Cut (Alum.) 160-05-2531-09
29.4 1 Impeller 9" Dia. "B" Cut (Alum.) 160-05-2532-08
30 1 Impeller Key 160-14-0614-02
31 1 Impeller Nut 160-14-0606-02
32 2 Impeller Nut Set Screws 160-14-0717-08
33 1 Bowl Bearing Sand Cap 160-08-2044-06
34 2 Bowl Bearing Sand Cap Set Screw 160-14-0724-09
35 1 Bowl No. 4417 160-04-1548-03
36 1 Bowl to Steering Housing O-ring 160-47-0256-06
37 1 Bowl Grease Fitting w/Cap 160-23-0562-03
38 1 Bowl Bearing No. 3980 160-08-2043-15
39 1 Bowl Bearing O-ring 160-47-0032-07
40 1 Hi-Flow Nozzle Plug Assembly 160-50-0056-02
41 8 Bowl Cap Screws 160-14-0731-00
43 1 Contour Grill Housing No. 4920 160-51-0175-07
43.1 1 Flat Grill Housing No. 4418 160-51-0171-19
43.2 1 Vee Grill Housing No. 4418 160-51-0175-07
44 1 Suction Piece Bottom Gasket 160-13-0854-72
45 14 Grill Housing Nut 160-14-0726-07
46 14 Grill Housing Washer 160-14-0756-00
47 14 Grill Housing Machine Screws 160-14-1713-00
48 1 Grill Insert Standard No. 4419 160-51-0102-05
48.1 1 Grill Insert Contour No. 5523 160-51-0273-08
49 2 Grill Insert Lock Washers 160-14-0745-04
50 2 Grill Insert Cap Screws 160-14-0743-06
51 1 Transom Adapter No. 4889 9° to 18° 160-52-0262-00
51.1 1 Transom Adapter No. 4331 2° to 9° 160-52-0262-00
52 1 Cable Gland Assembly 1/2" NPT 160-23-1408-09
53 1 Transom Adapter O-ring 160-47-0451-09
54 1 Transom Adapter Drain Plug 160-31-0061-66
55 2 Transom Adapter Wood Screws 160-23-0572-01
56 10 Transom Adapter Cap Screw 160-14-1713-00
57 10 Transom Adapter Washer 160-14-0756-00
58 10 Transom Adapter Nut 160-14-0726-07
59 1 Steering Housing No. 4766 160-52-0248-09
60 4 Steering Housing Cap Screws 160-14-0731-00
61 4 Steering Housing Washers 160-14-0740-41
62 1 Tiller Arm No. 4764 160-52-0249-24
63 1 Tiller Arm Groove Pin 160-14-1573-09
64 1 Deflector Top Pivot Pin 160-52-0238-01
65 1 Top Pivot Pin O-ring 160-47-0114-08
66 2 Deflector Pivot Bearing 160-08-2196-02
67 1 Pivot Pin Retaining Rings 160-14-1918-03
68 1 Deflector Bottom Pivot Pin 160-52-0359-04
69 12 Spacer Washers for Pivot Pins 160-52-0078-04
82 1 Deflector No. 4414 160-52-0241-06
83 1 Top Pivot Pin Groove Pin 160-14-0804-02
84 1 Groove Pin Spring Pin 160-14-1521-02
85 1 Cable Pivot Pin 160-52-0239-00
86 2 Cable Pivot Pin Bearings 160-08-2195-11
87 2 Cable Pivot Pin Retainer 160-14-0775-07
88 1 Reverse Gate No. 4415 160-52-0242-05
89 2 Reverse Gate Pivot Pin 160-52-0237-02
90 2 Reverse Gate Pivot Bearings 160-08-2196-02
91 4 Pivot Pin Retaining Rings 160-14-0774-08
92 1 Shift Cable Pivot Bracket No. 4751 160-52-0244-03
93 2 Cable Pivot Bracket Set Screws 160-14-0052-19
94 1 Cable Pivot Bracket O-ring 160-47-0008-07
95 1 Cable Lock Nut 160-14-0797-01
96 2 Cable Pivot Bracket Bearings 160-08-2195-11
97 1 Cable Pivot Bracket Retainer 160-14-0775-07
98 1 Steering Tube for Rideguide, Morse & Teleflex 160-51-0431-07
110 Opt. Safety Tilt Rudder - No Longer Available 160-52-0233-06
111 Opt. Rudder Sheer Pin (Pkg. of 5) 160-52-0259-05
