Model GM 454/502 CID V8 Big Block


Model GM 454/502 CID V8 Big Block

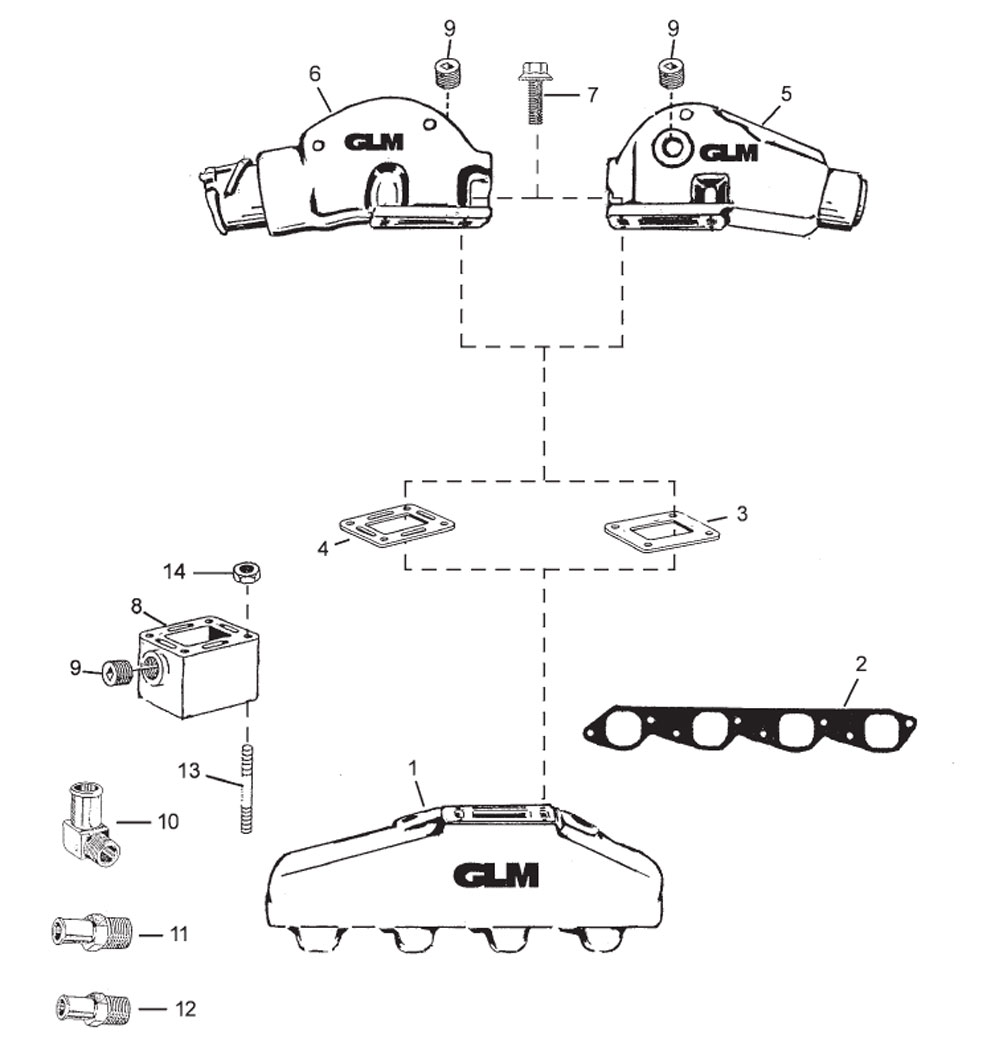

Ref No. GLM No. OEM No. Description Qty.
1 56240 CHVA-1-84 (Barr) Exhaust Manifold Assembly 1
2 33760 CHVA-47-0000 Gasket - Exhaust Manifold
3 36820 1-0105 (Barr) Gasket - Exhaust Elbow 1
4 36830 1-0107 (Barr) Gasket - Exhaust Elbow 1
5 56110 20-0082 (Barr) Exhaust Elbow 3" 10 Degrees 1
    0992-000 (M.P.)   1
6 56140 20-0100 (Barr) Exhaust Elbow 4" 10 Degrees 1
    0992-593 (M.P.)
7 22355 - Screw 4
8 56030 20-0097 (Barr) Spacer 3" 1
9* 21892 - Plug 1
10 13960 - 90 Degree Elbow Fitting 3/4 -14 x 1 1
11 13984 - Straight Fitting 3/4 - 14 x 1 1
12 13986 - Straight Fitting 3/4 - 14 x 3/4 1
13 22481 - Stud 4
14 21248 - Nut 4
* Included with Exhaust Elbows 56110 & 56140.
Plug also included with 3” Spacer 56030.
