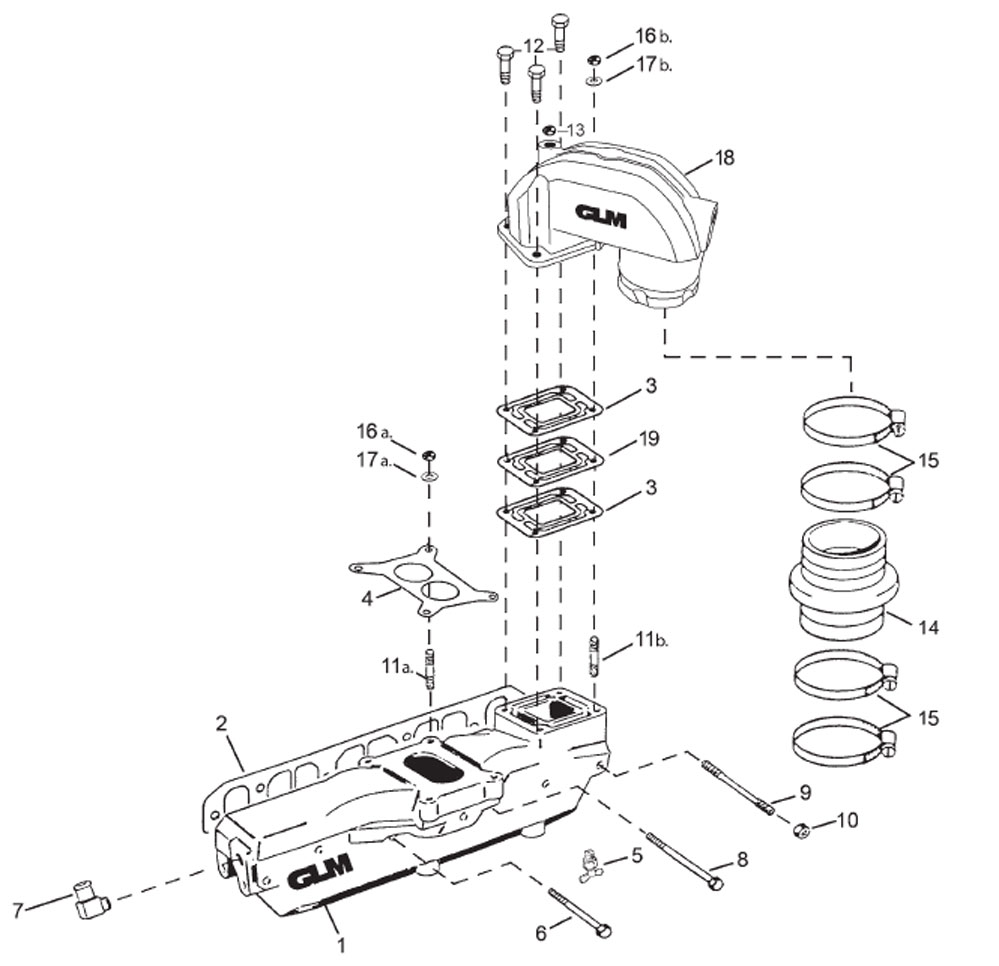

Model 3.0/3.0 H.O. - GM 181 CID, 4-Cyl. (1991 & Up)


Model 3.0/3.0 H.O. - GM 181 CID, 4-Cyl. (1991 & Up)

Ref No. GLM No. OEM No. Description Qty.
1 51450 3858870 Exhaust Manifold - Cast Iron 1
2* 33580 3853256 Gasket - Exhaust Manifold 1
3* 33770 3850495 Gasket - Exhaust Elbow 2
4* 30382 3853283 Gasket - Carburetor 1
5* 13993 82745 Drain Cock 1
6 22315 3853430 Screw 3
7* 13970 3852538 Elbow Fitting - Exhaust Manifold 1
8 21757 3853431 Screw 1
9 22488 3853378 Stud - Exhaust Manifold 2
10 21248 3853404 Locknut 2
11A 22482 3853373 Stud - Carburetor 4
11B 22482 3853373 Stud - Exhaust Manifold 1
12 21753 3853397 Screw - Exhaust Elbow 3
13 21887 22-36382 Plug 2
14 89222 3863450 Exhaust Hose 1
15 01090 3852604 Clamp 4
16A 19354 11-862902 Nut - Carburetor 4
16B 19354 11-862902 Nut - Exhaust Manifold 1
17A 21664 12-20084 Washer - Carburetor 4
17B 21664 12-20084 Washer - Exhaust Manifold 1
18 51340 3863071 Exhaust Elbow 1
19 50007 3853628 Restrictor 1
20 58450 - Manifold Set 1
* Included with Manifold No. 51450
