Model MCM/MIE 470 - Inline-4, 224 CID, 4-Cyl. (1976-82)


Model MCM/MIE 470 - Inline 4, 224 CID, 4-Cyl. (1976-82)

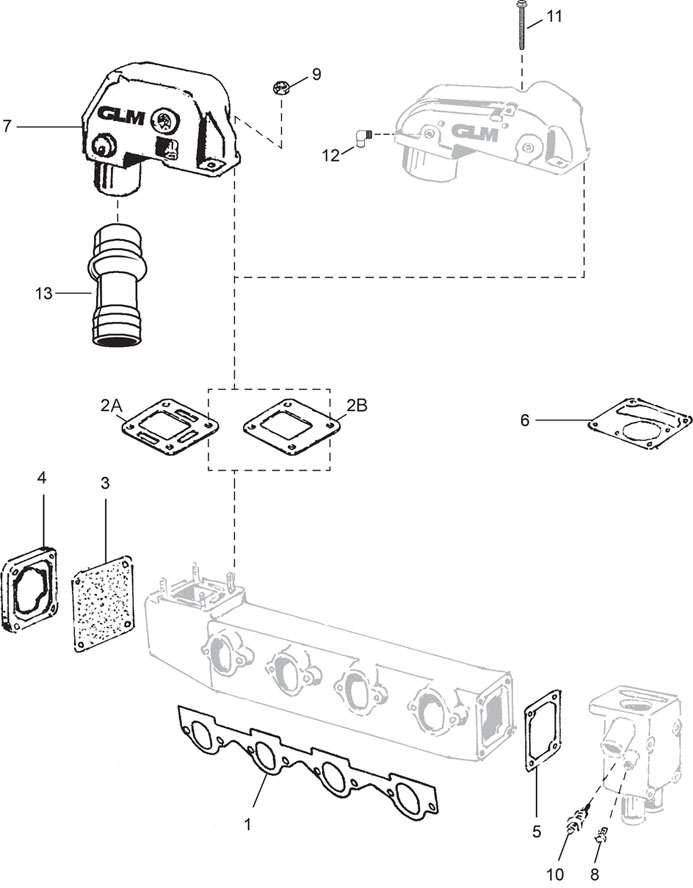

Ref No. GLM No. OEM No. Description Qty.
1 31710 27-68715 Gasket - Exahust Manifold 1
2A 31520 27-99777-2 Gasket - Exhaust Elbow 1
2B 32630 27-92720 Gasket - Exhaust Elbow (closed cooling 1968-82) 1
3 30920 27-807218 Gasket - End Cap 1
4 51030 73813A1 End Cap 1
5 31490 27-73812 Gasket - Thermostat Housing 1
6 31840 27-74830 Gasket - Reservoir 1
7 51120 76351A2 Exhaust Elbow Assembly 3” 90 Degree Angle (1976-77) 1
8 21894 22-32803 Plug 1
9 21248 11-49838 Flange Serrated Nut 1
10 13830 15995 Temperature Sender 1
11 22446 10-72094 Screw 4
12 13960 - Elbow Fitting 1
13 89060 53114A1 Exhaust Bellow 1
